Repair Procedures: Installation

NOTE:

Do not use already used injector fixing clip again.
Install the component with the specified torques.
Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.
Apply engine oil to the injector O-ring.
Do not use already used injector O-ring again.
Do not use already used bolt again.
When insert the injector, be careful not to damage the injector tip.
When tightening the delivery pipe installation bolts, tighten them in accordance with the order ((1)→(2)→(3)→(4)) after tightening with hand -screwed torque.

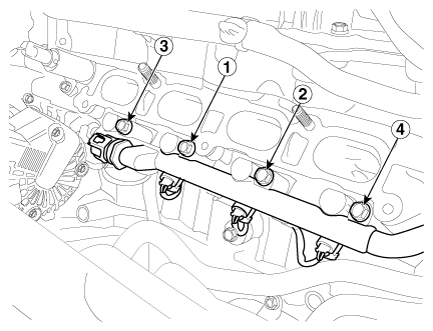

Fig 1: Delivery Pipe Installation Bolts Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.
