Component Location
WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

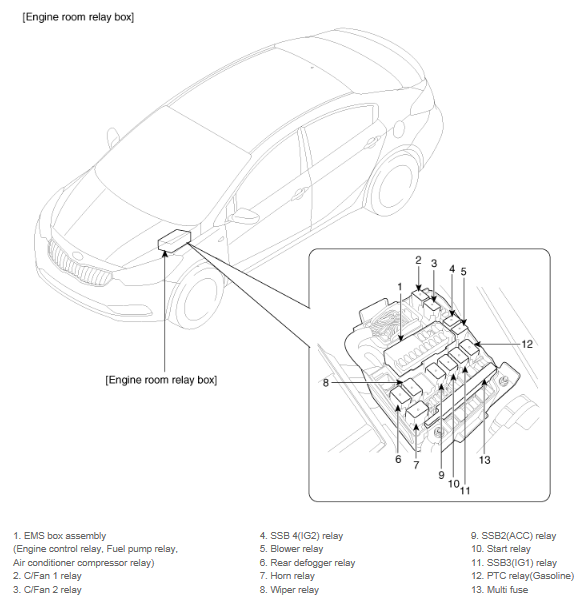

Courtesy of KIA MOTORS AMERICA, INC. ENGINE ROOM RELAY BOX RELAY IDENTIFICATION
| RELAY DESCRIPTION |
| Engine Control Relay |
| Fuel Pump Relay |
| A/C Relay |
| Condenser Fan Relay (High) |
| Condenser Fan Relay (Low) |
| SSB4 (IG2) Relay |
| Blower Relay |
| Rear Defogger Relay |
| Horn Relay |
| Wiper Relay |
| SSB2 (ACC) Relay |
| Start Relay |
| SSB3 (IG1) Relay |
| PTC Relay |
Courtesy of KIA MOTORS AMERICA, INC.
