Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the front bumper.
(Refer to Body - "FRONT BUMPER COVER ")
Disconnect the connector (A) and remove the ambient temperature sensor (B).

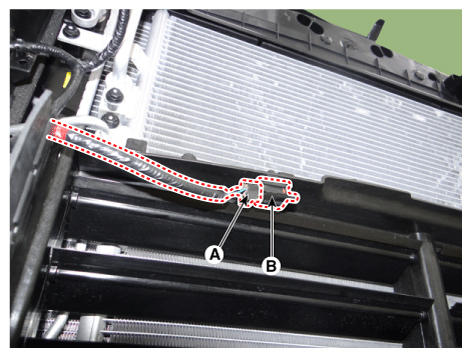

Fig 1: Locating Connector And Ambient Temperature Sensor
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
