Circuit Diagram: Notes

WARNING: This page is about a different variant/trim than selected.

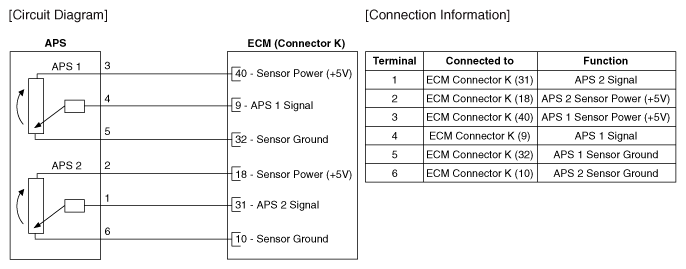

Fig 1: Accelerator Position Sensor Circuit Diagram

G12161400

Courtesy of KIA MOTORS AMERICA, INC.
