Dual Clutch Transmission Control System - 1.6L T
›
Description And Operation
›
Description
›
Control system logic
Control system logic

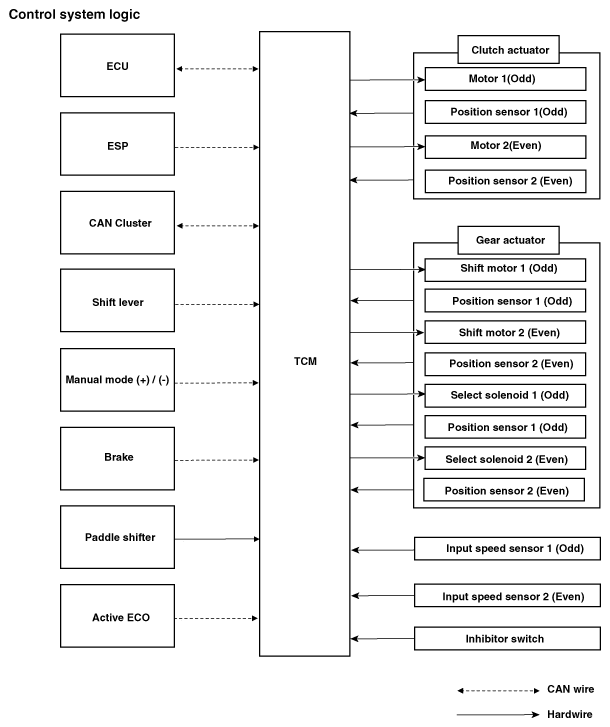

Fig 1: Dual Clutch Transmission Control System Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
