Repair Procedures: Removal

Turn ignition switch OFF and disconnect the battery negative (-) terminal.
Disconnect the alternator connector (A).
Disconnect the alternator "B" terminal (B) after loosening the mounting nut.

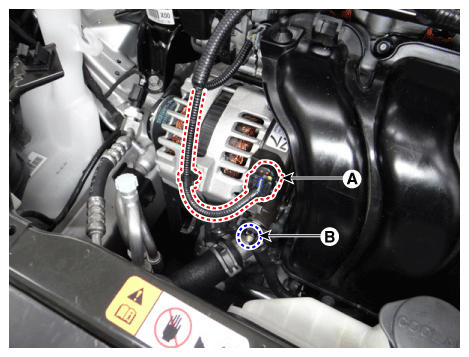

Fig 1: Locating Alternator Connector And Alternator B Terminal
Courtesy of KIA MOTORS AMERICA, INC.
Using the hexagon wrench, turn the tensioner (A) counterclockwise and loosen.

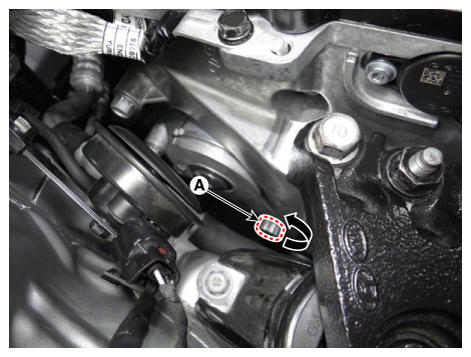

Fig 2: Turning Tensioner
Courtesy of KIA MOTORS AMERICA, INC.
Remove the alternator upper mounting bolt (A).
Alternator upper mounting bolt:

29.4 - 41.2 N.m (3.0 - 4.2 kgf.m, 21.7 - 30.4 lb.ft)

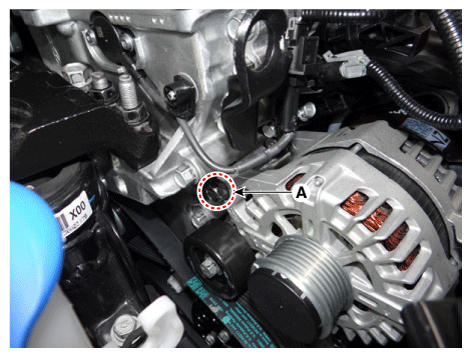

Fig 3: Locating Alternator Upper Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the alternator mounting bracket (A) after loosening the lower mounting bolts (B).
Alternator bracket & lower mounting bolt:

21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.9 lb.ft)

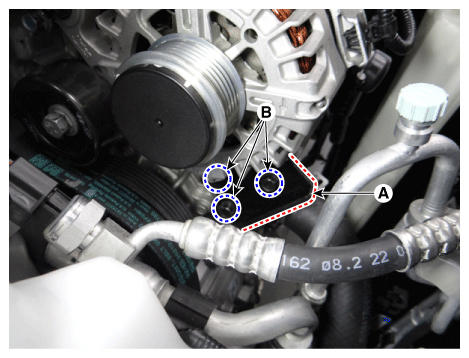

Fig 4: Locating Alternator Mounting Bracket With Lower Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the alternator (A).

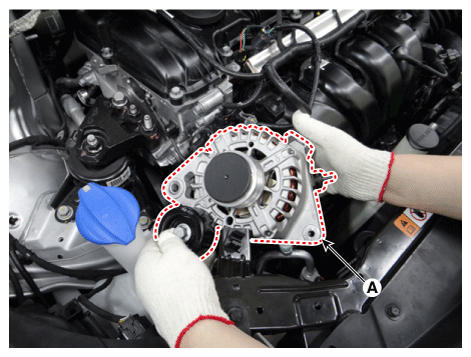

Fig 5: Removing Alternator

Courtesy of KIA MOTORS AMERICA, INC.
