Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the engine room under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

  3. Disconnect the ambient temperature sensor connector (A).
  4. Remove the ambient temperature sensor (B).

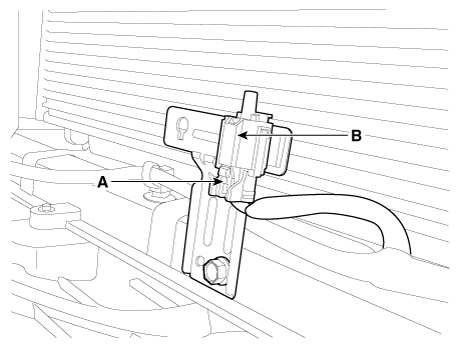

Fig 1: Ambient Temperature Sensor Connector And Ambient Temperature Sensor
G12161353Courtesy of KIA MOTORS AMERICA, INC.
