Wave Form

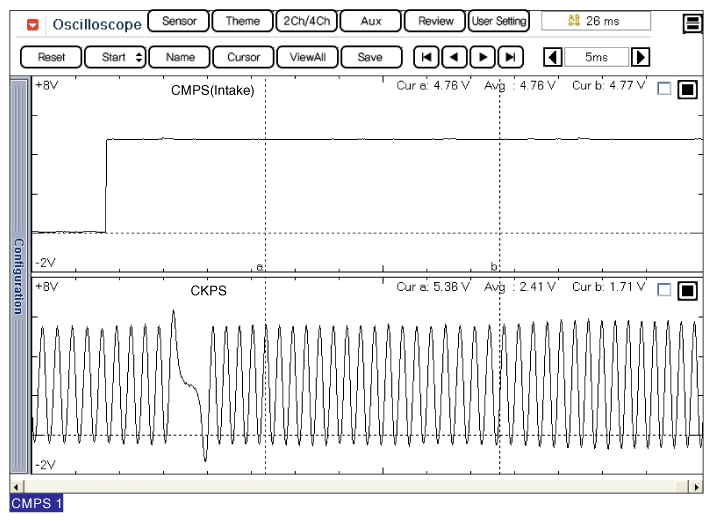

Fig 1: Scantool Display - Camshaft Position Sensor Waveform (1)
G12161377Courtesy of KIA MOTORS AMERICA, INC.

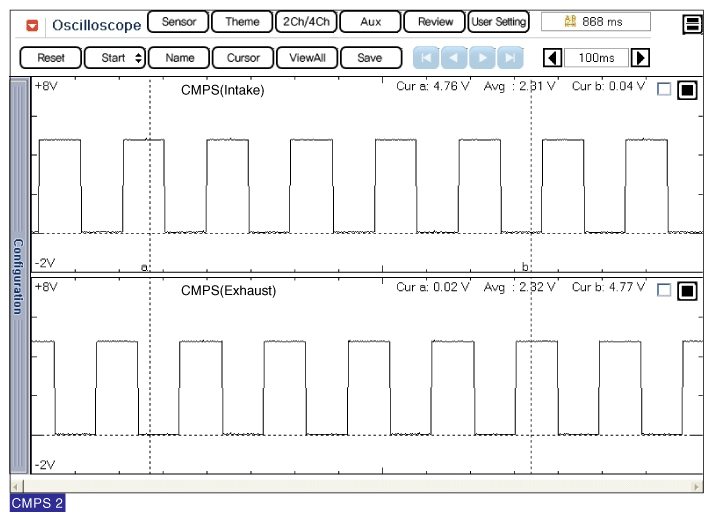

Fig 2: Scantool Display - Camshaft Position Sensor Waveform (2)
G12161378Courtesy of KIA MOTORS AMERICA, INC.
