Forte5 SX, Standard Trans
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 1.6L T
›
Components And Components Location
›
Components Location
Components Location

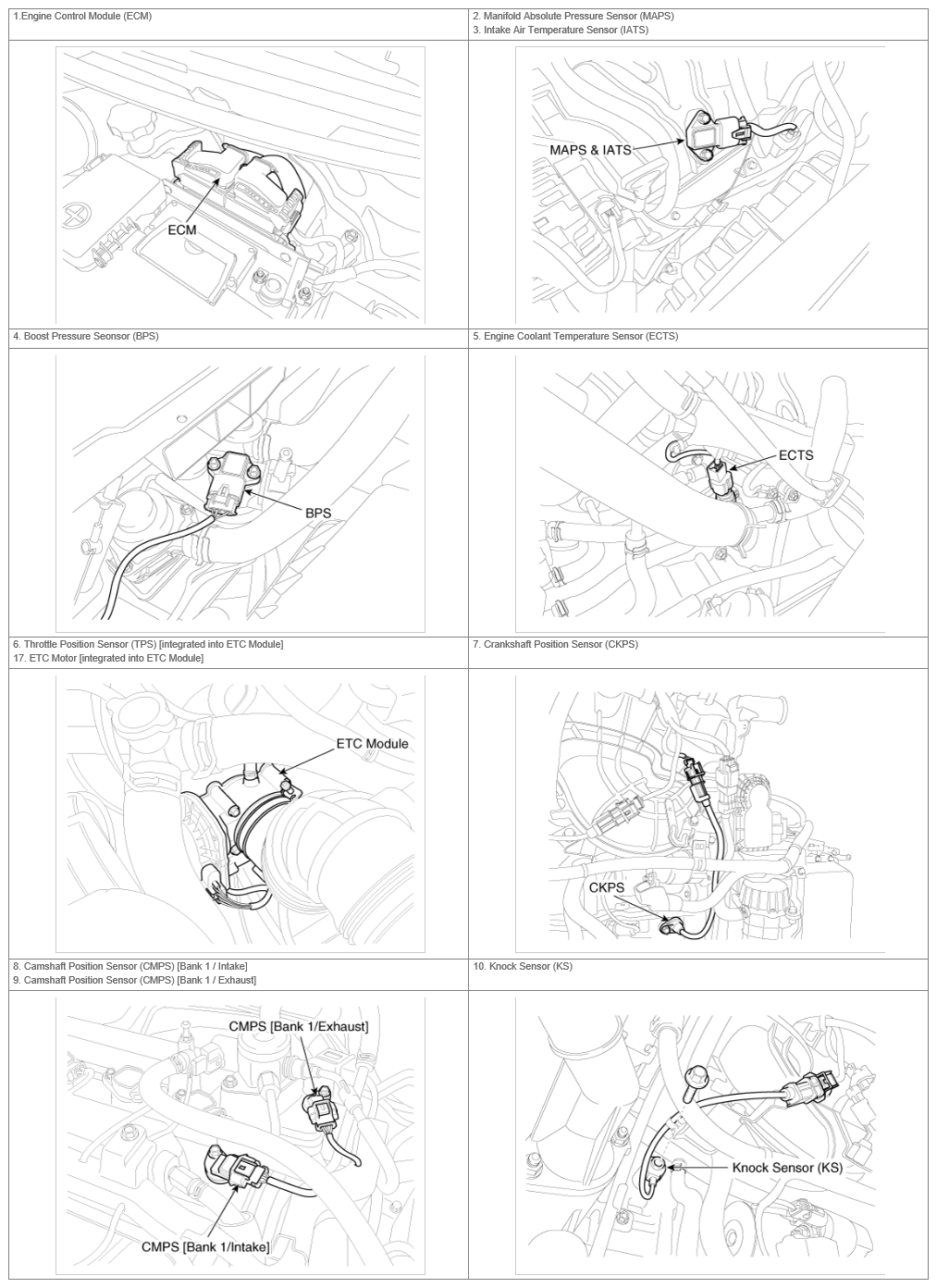

Fig 1: Engine Control System Components Location (1 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

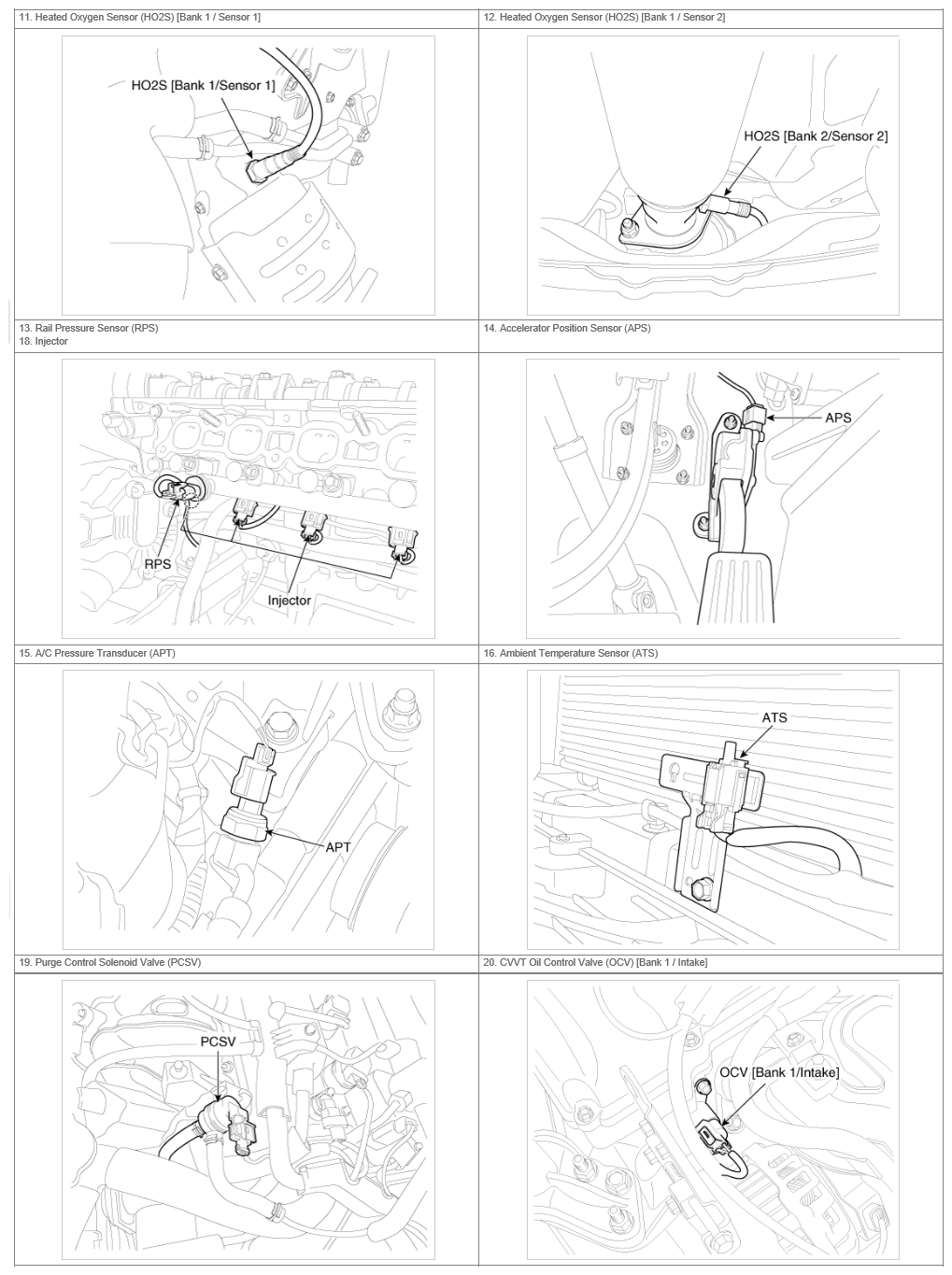

Fig 2: Engine Control System Components Location (2 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

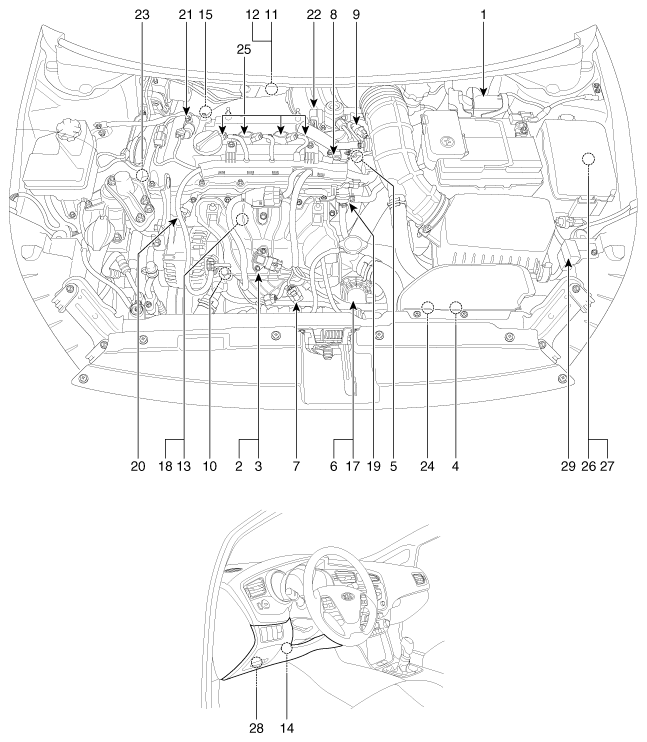

Fig 3: Engine Control System Components Location (3 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

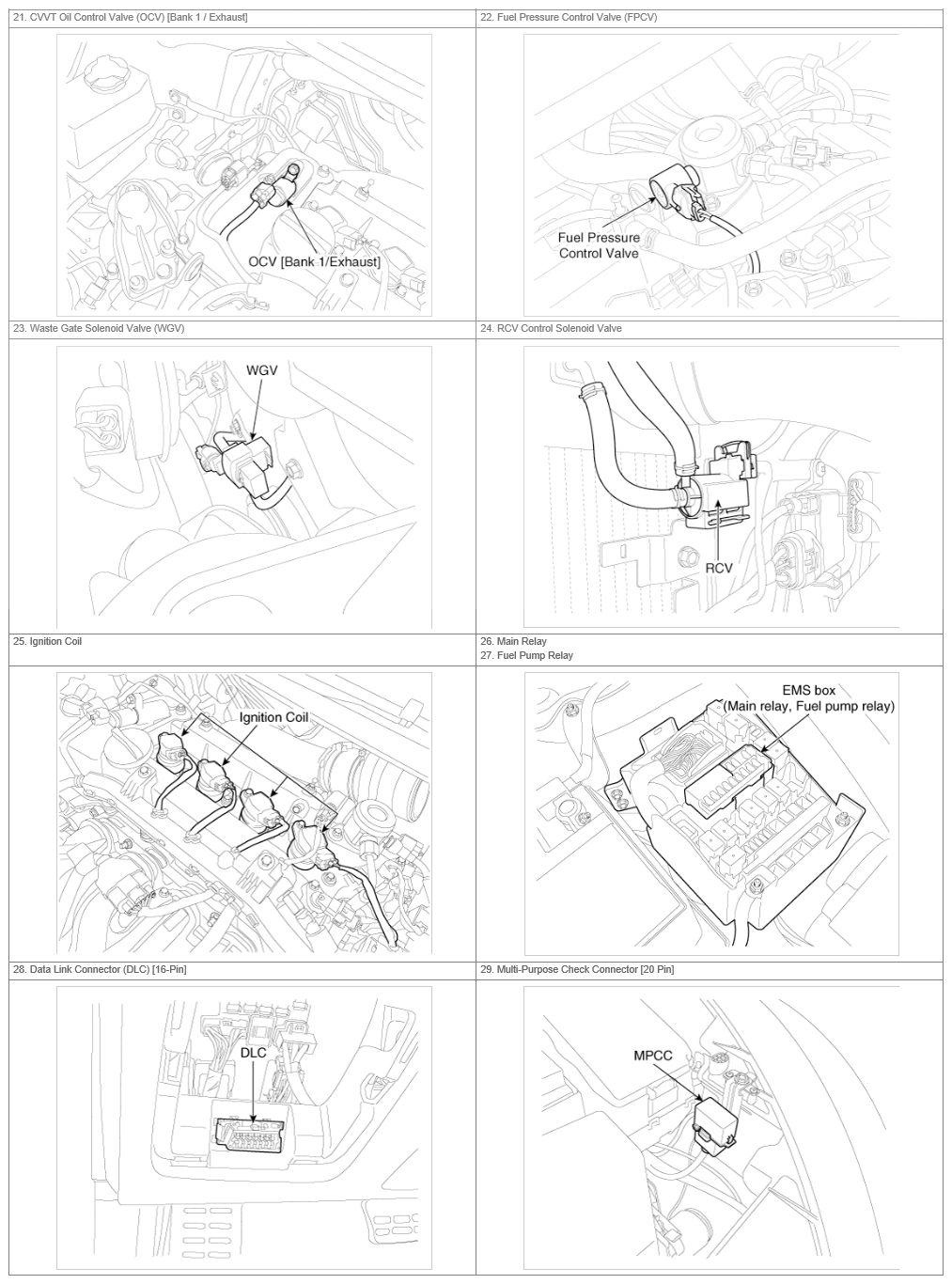

Fig 4: Engine Control System Components Location (4 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

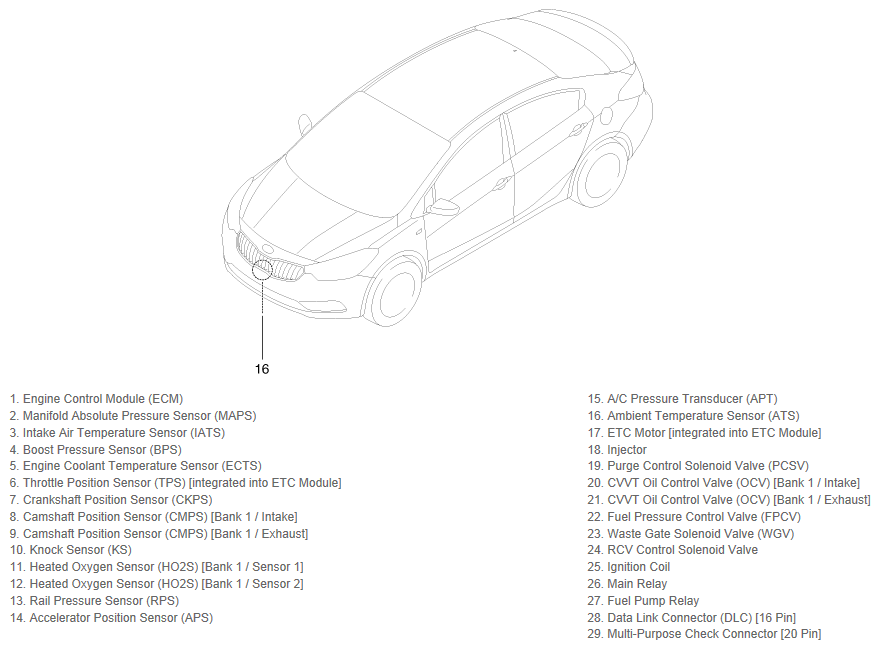

Fig 5: Engine Control System Components Location (5 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.
