Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.

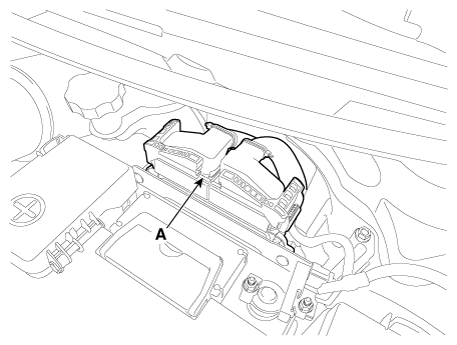

  2. Disconnect the ECM Connector (A).
    Fig 1: ECM Connector
    G12161322Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the battery (Refer to "CHARGING SYSTEM " ).

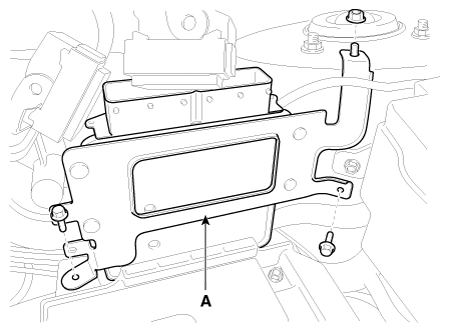

  4. Remove the mounting bolts and nut, and then remove the ECM assembly (A).
    Fig 2: ECM Assembly With Mounting Bolts And Nut
    G12161323Courtesy of KIA MOTORS AMERICA, INC.

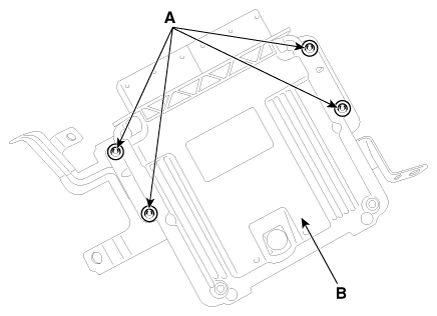

  5. Remove the ECM (B) after removing 4 nuts (A) from the bracket.
    Fig 3: ECM With Nuts
    G12161324Courtesy of KIA MOTORS AMERICA, INC.
