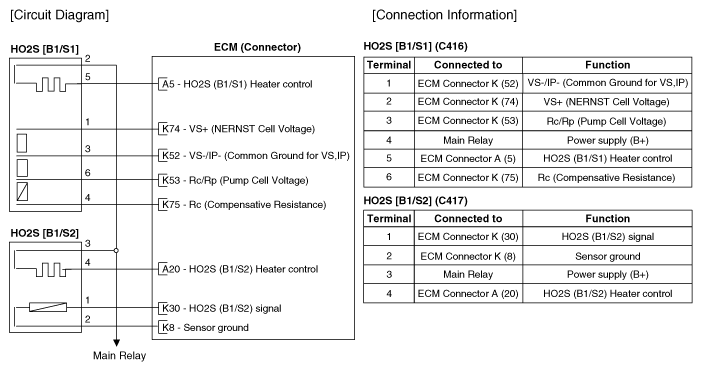

Home › Kia › 2017 › Forte5 SX, Standard Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L T › Heated Oxygen Sensor (HO2S) › Schematic Diagrams › Circuit Diagram › Notes
