Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the waste gate solenoid valve connector (A).
  3. Disconnect the vapor hoses (B) from the waste gate solenoid valve.
  4. Remove the waste gate valve (D) by loosening the bolt (C).

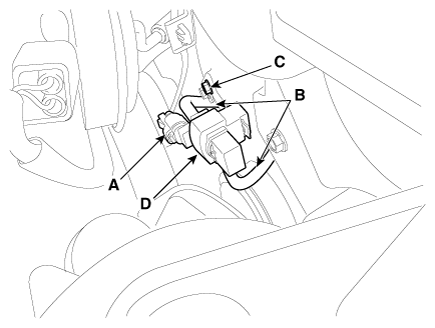

Fig 1: Waste Gate Solenoid Valve Connector, Vapor Hoses, Waste Gate Valve And Bolt
G12161431Courtesy of KIA MOTORS AMERICA, INC.
