Repair Procedures: Removal

Release the residual pressure in fuel line (Refer to the Fuel Delivery System - Repair Procedures - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").
Remove the rear seat cushion (Refer to "SEAT " ).

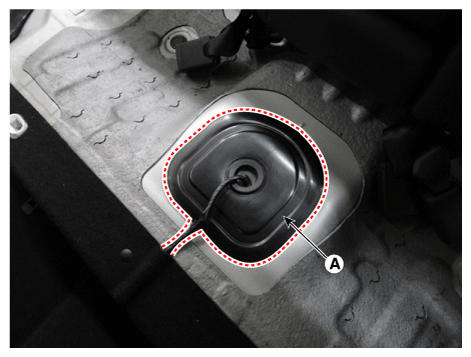

Remove the fuel pump service cover (A).

Fig 1: Locating Fuel Pump Service Cover
Courtesy of KIA MOTORS AMERICA, INC.

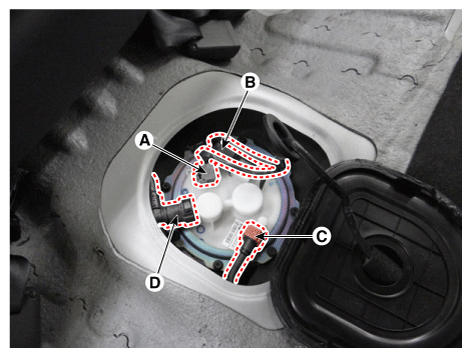

Disconnect the fuel pump connector (A), fuel tank pressure sensor connector (B), fuel feed tube quick connector (C) and vapor tube quick connector (D).

Fig 2: Locating Fuel Pump Connector, Fuel Tank Pressure Sensor Connector, Fuel Feed Tube Quick Connector And Vapor Tube Quick Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear - LH wheel & tire.
Lift the vehicle and support the fuel tank with a jack.

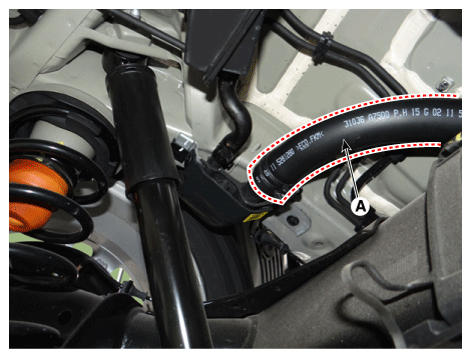

Disconnect the fuel filler hose (A).

Fig 3: Locating Fuel Filler Hose
Courtesy of KIA MOTORS AMERICA, INC.

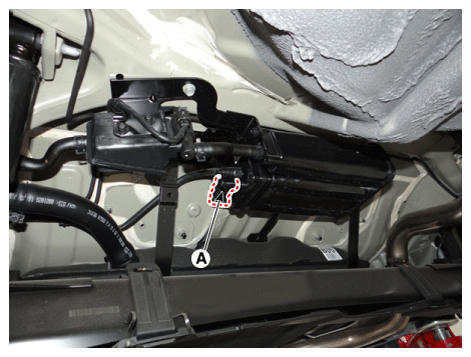

Disconnect the vapor tube quick-connector (A).

Fig 4: Locating Vapor Tube Quick-Connector
Courtesy of KIA MOTORS AMERICA, INC.

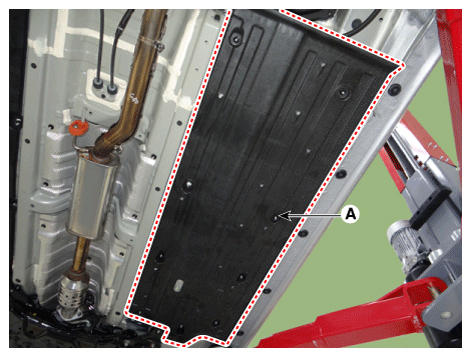

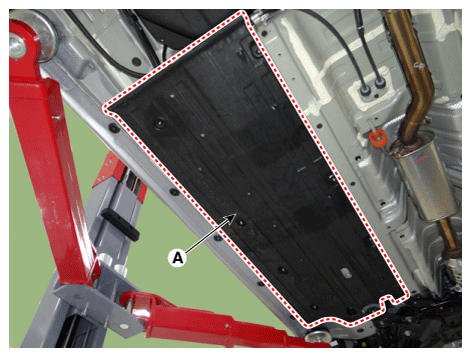

Remove the under cover (A) after loosening the mounting nuts.

Fig 5: Locating Under Cover With Mounting Nuts (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Locating Under Cover With Mounting Nuts (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

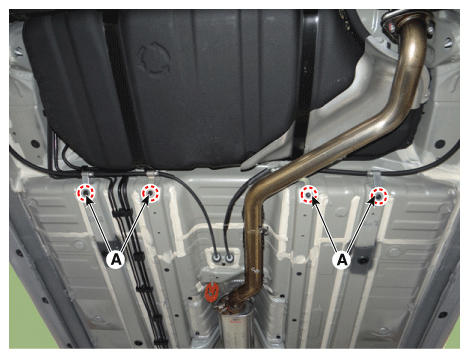

Remove the brake parking cable after loosening the mounting bolts (A).

Fig 7: Locating Brake Parking Cable Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the center muffler assembly.
(Refer to Engine Mechanical System - "MUFFLER ")

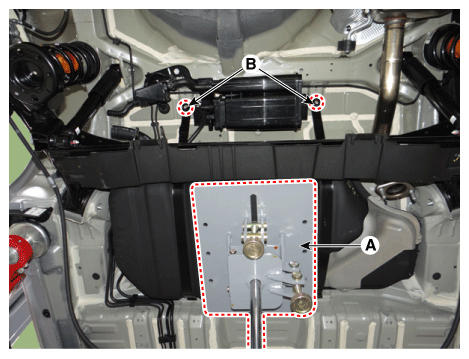

Support the fuel tank with a jack (A).
Remove the fuel tank band mounting nuts (B).
Fuel tank band mounting nut:

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)

Fig 8: Supporting Fuel Tank With Jack
Courtesy of KIA MOTORS AMERICA, INC.

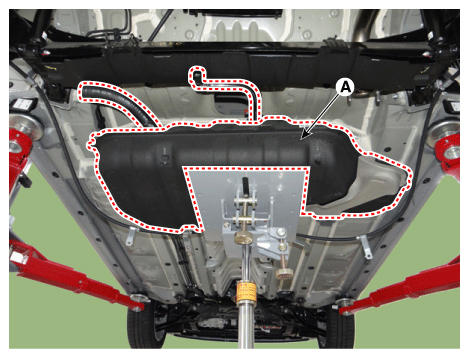

Remove the fuel tank (A).

Fig 9: Locating Fuel Tank
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When removing the fuel tank, the fuel tank must be tilted because of interfering with coupling.
