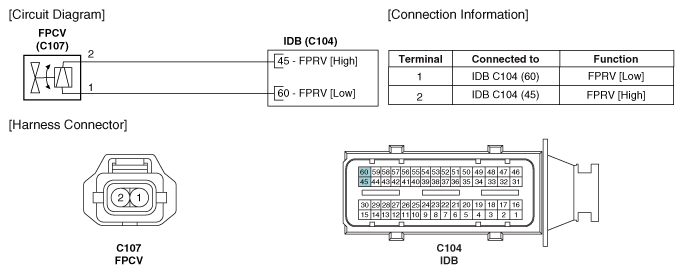

Home › Kia › 2017 › K900 V6 Premium › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.8L › Fuel Pressure Control Valve › Schematic Diagrams › Circuit Diagram
