Signal Waveform

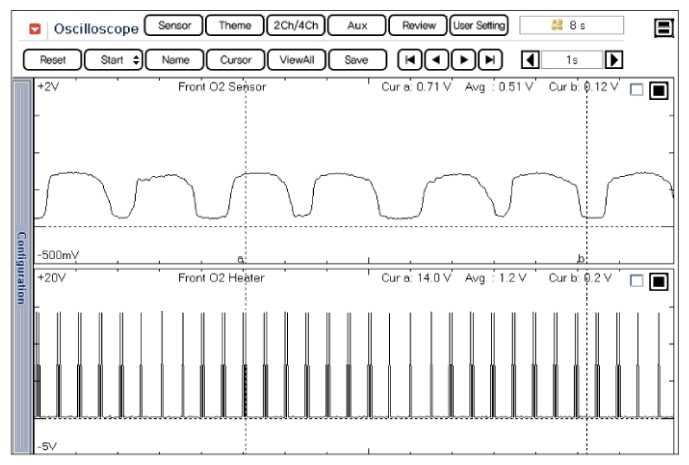

Fig 1: Screen Display - Signal Waveform (Front O2 Heater)
G11405398Courtesy of KIA MOTORS AMERICA, INC.

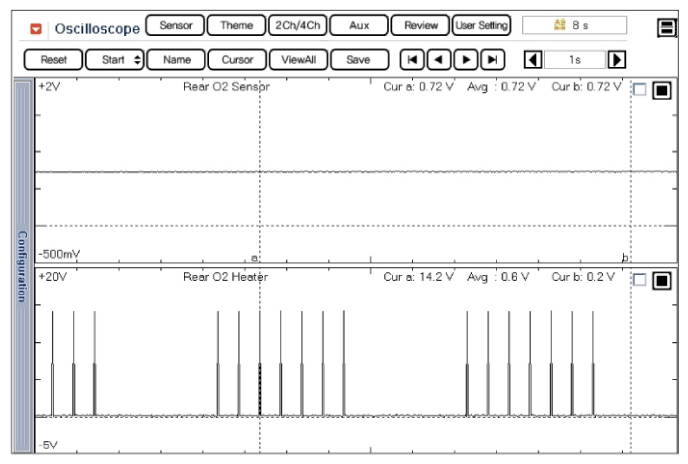

Fig 2: Screen Display - Signal Waveform (Rear O2 Heater)
G11405399Courtesy of KIA MOTORS AMERICA, INC.
