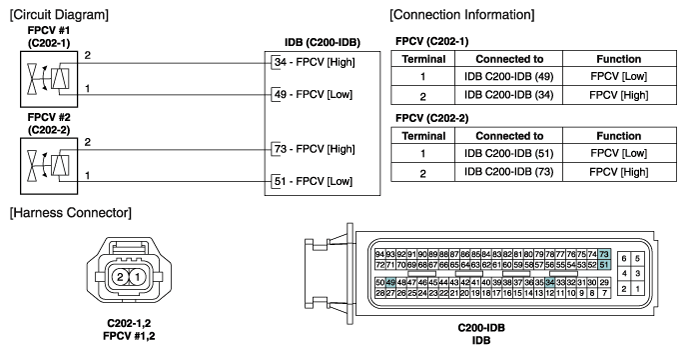

Home › Kia › 2017 › K900 V8 Luxury › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 5.0L › Fuel Pressure Control Valve › Schematic Diagrams › Circuit Diagram
