Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the luggage side trim [RH].

    (Refer to Body - "LUGGAGE SIDE TRIM ")

  3. Disconnect the AC inverter unit connector (A).

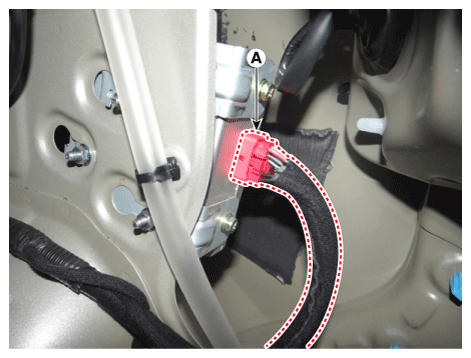

    Fig 1: Locating AC Inverter Unit Connector
    G12332230Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the AC inverter unit (A) after loosening the mounting nuts.

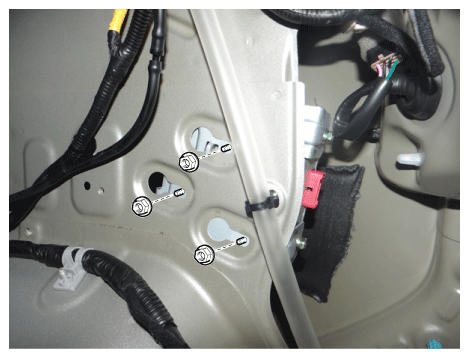

Fig 2: Removing AC Inverter Unit Mounting Nuts
G12332231Courtesy of KIA MOTORS AMERICA, INC.

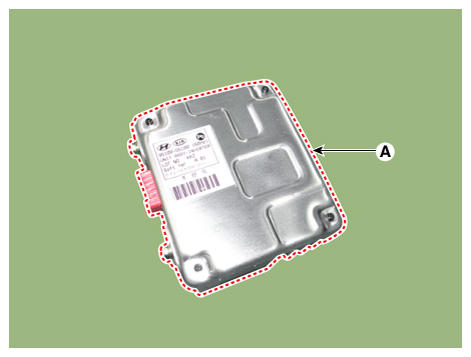

Fig 3: Locating AC Inverter Unit
G12332232Courtesy of KIA MOTORS AMERICA, INC.
