[Position Sensor]

ELECTRIC EGR CONTROL VALVE [POSITION SENSOR] SPECIFICATIONS

Item Specification
Sensor Power (V) 5
Pin 3
Closed Voltage (V) 3.85 - 4.15
Opened Voltage (V) 0.75 - 1.25

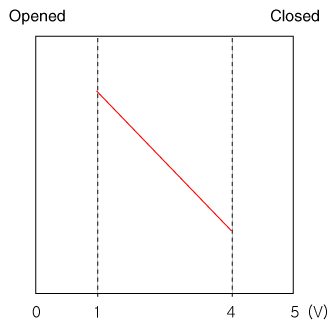

Fig 1: Electric EGR Control Valve Output Voltage Graph
G12335722Courtesy of KIA MOTORS AMERICA, INC.
