Repair Procedures: Disassembly

WARNING:
  • Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.
  • Be sure to shut off the high voltage circuit according to the "HIGH VOLTAGE SHUT-OFF PROCEDURE " before doing any work related with the high voltage system to avoid serious electrical injuries.
NOTE:
  • Turn the crankshaft pulley so that the No. 1 piston is at TDC (Top Dead Center).
  • Use fender covers to avoid damaging painted surfaces.
  • To avoid damaging the cylinder head, wait until the engine coolant temperature drops below normal temperature before removing it.
  • When handling a metal gasket, be careful not to fold the gasket or damage the contact surface of the gasket.
  • To avoid damage, unplug the wiring connectors carefully while holding the connector portion.

Information

Mark all wiring and hoses to avoid mis-connection.

  1. Shut-Off the high voltage circuit.

    (Refer to Engine Mechanical System - "HIGH VOLTAGE SHUT-OFF PROCEDURE ")

  2. Remove the engine assembly from the vehicle.

    (Refer to Engine and Transaxle Assembly - "ENGINE AND TRANSAXLE ASSEMBLY ")

  3. Remove the dual clutch transmission.

    (Refer to Dual Clutch Transmission (DCT) - "DUAL CLUTCH TRANSMISSION ASSEMBLY ")

  4. Install the engine to engine stand for disassembly.
  5. Remove the intake manifold.

    (Refer to Intake and Exhaust System - "INTAKE MANIFOLD ")

  6. Remove the exhaust manifold.

    (Refer to Intake and Exhaust System - "EXHAUST MANIFOLD ")

  7. Remove the hybrid starter generator (HSG).

    (Refer to Hybrid Motor System (HSG) - "HYBRID STARTER GENERATOR (HSG) ")

  8. Remove the timing chain.

    (Refer to Timing System - "TIMING CHAIN ")

  9. Remove the Cylinder head assembly.

    (Refer to Cylinder Head Assembly - "CYLINDER HEAD ")

  10. Remove the Fly Wheel.

    (Refer to Cylinder Block - "FLY WHEEL ")

  11. Remove the thermostat.

    (Refer to Cooling System - "THERMOSTAT ")

  12. Remove the water pump assembly.

    (Refer to Cooling System - "WATER PUMP ")

  13. Remove the A/C compressor.

    (Refer to Heating, Ventilation Air conditioning - "COMPRESSOR ")

  14. Remove the oil filter.

    (Refer to Lubrication System - "ENGINE OIL ")

  15. Remove the oil screen.

    (Refer to Lubrication System - "OIL PAN ")

  16. Remove the ladder frame mounting bolt.

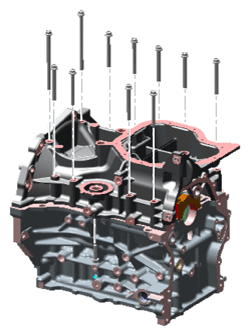

    Fig 1: Removing Ladder Frame Mounting Bolt
    G12328728Courtesy of KIA MOTORS AMERICA, INC.
  17. Using the SST (09215-3C000) and remove the ladder frame (A).

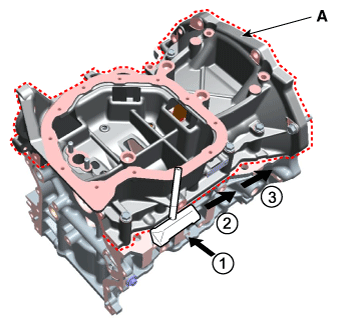

    Fig 2: Removing Ladder Frame
    G12328729Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Insert the SST between the ladder frame and the cylinder block by tapping it with a plastic hammer in the direction of (1) arrow.
    • After tapping the SST with a plastic hammer along the direction of (2) arrow around more than 2/3 edge of the ladder frame, remove it from the cylinder block.
    • Do Not turn over the SST abruptly without tapping. It be result in damage of the SST.
  18. Check the connecting rod side clearance.
  19. Check the connecting rod bearing cap oil clearance.
  20. Remove the piston and connecting rod assembly.
    1. Using a ridge reamer, remove all the carbon from the top of the cylinder.
    2. Remove the connecting rod bearing caps (A).
    3. Push the piston and connecting rod assembly (B) with upper bearing through the top of the cylinder block.

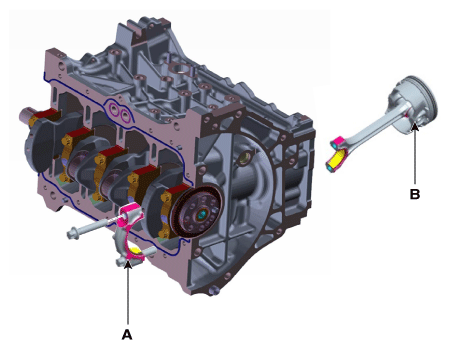

      Fig 3: Removing Connecting Rod Bearing Caps
      G12328730Courtesy of KIA MOTORS AMERICA, INC.

      Information

      • Mark the connecting rod and bearing caps to be able to reassemble in the original position and direction.
      • Keep the connecting rod and caps with the bearings assembled together.
      • Arrange the piston and connecting rod assemblies in the correct order.
      • Mark the piston and connecting rod assembly to be able to reassemble in the original position.
  21. Check fit between piston and piston pin.

    Try to move the piston back and forth on the piston pin. If any movement is felt, replace the piston and pin as a set.

  22. Disassemble the piston rings.
    1. Using a piston ring expender, remove the two compression rings.
    2. Remove the two side rails and coil spring.

      Information

      Arrange the piston rings in the correct order.

  23. Disassemble the connecting rod from the piston.
    1. Remove the snap ring (A) from the piston.
    2. Remove the piston pin (B) from the piston.
    3. Disassemble the piston (C) and connecting rod (D).
    Fig 4: Removing Snap Ring From Piston
    G12328731Courtesy of KIA MOTORS AMERICA, INC.
