Components And Components Location: Components

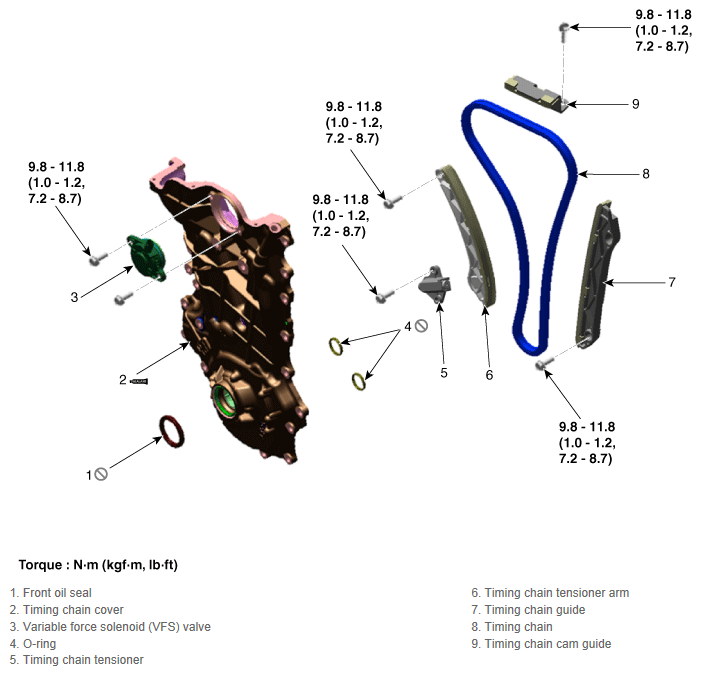

Fig 1: Timing System Components With Torque Specification
G12331963Courtesy of KIA MOTORS AMERICA, INC.
