Engine Control System
›
Accelerator Position Sensor (APS)
›
Schematic Diagrams
›
Circuit Diagram
›
Notes
Circuit Diagram: Notes

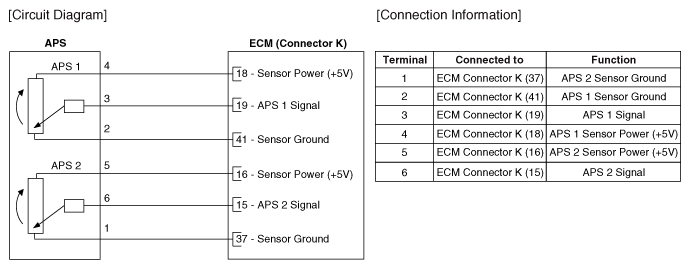

Fig 1: Accelerator Position Sensor System Circuit
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
