Niro EX
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System
›
Electric EGR Control Valve
›
Troubleshooting
›
Signal Waveform
Signal Waveform

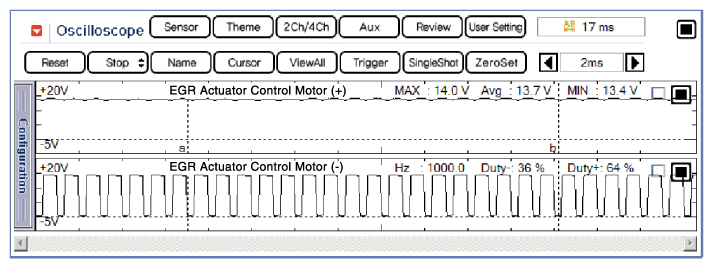

Fig 1: Screen Display - Duty Control (EEGR Motor -) During Deceleration Or Idle
Courtesy of KIA MOTORS AMERICA, INC.

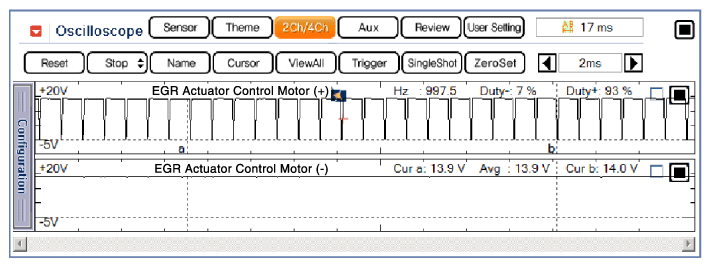

Fig 2: Screen Display - Duty Control (EEGR Motor +) During Acceleration
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
