Fuel Pressure Control Valve (FPCV)
›
Troubleshooting
›
Signal Waveform
Signal Waveform

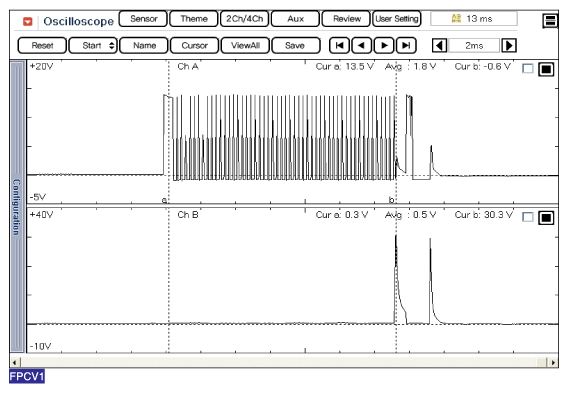

Fig 1: Screen Display - Fuel Pressure Control Valve Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
