Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

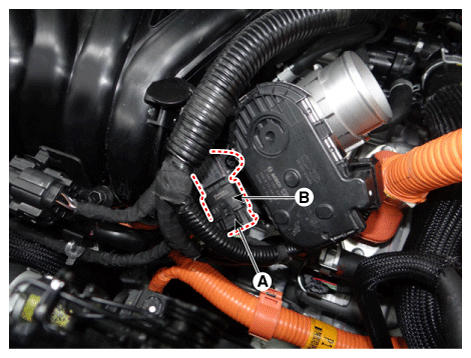

- Disconnect the intake air temperature sensor connector (A).
- Remove the sensor (B) after loosening the mounting bolt from the intake manifold.
Manifold Absolute Pressure Sensor Mounting Bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
