NVLD (Natural Vacuum Leakage Detection)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

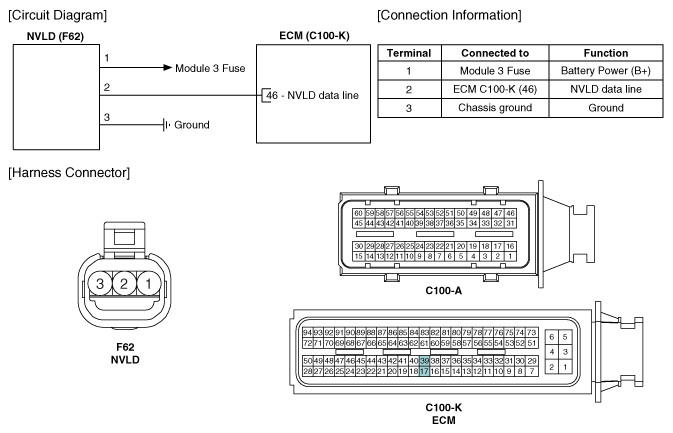

Fig 1: NVLD (Natural Vacuum Leakage Detection) System Circuit
Courtesy of KIA MOTORS AMERICA, INC.
