Repair Procedures: Replacement

Remove the ignition coil.
(Refer to Ignition System - "IGNITION COIL ")
Using a spark plug wrench, remove the spark plug (A).
Spark Plug :

19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.0 Ib.ft)
NOTE:
- Be careful that no contaminates enter into spark plug holes.

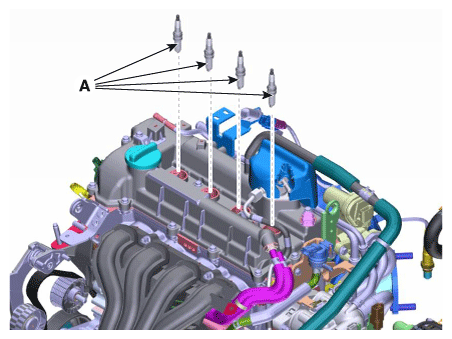

Fig 1: Removing Spark Plug
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
