Repair Procedures: Installation

Install in the reverse order of removal.
Perform the procedure below after installing.
1. Refill the hybrid cooling system with coolant and bleed air from the hybrid cooling system using KDS/GDS.
  (Refer to Hybrid Motor Cooling System - "HYBRID MOTOR COOLING SYSTEM ")
2. Perform the engine clutch/motor resolver adaptation using the KDS/GDS.

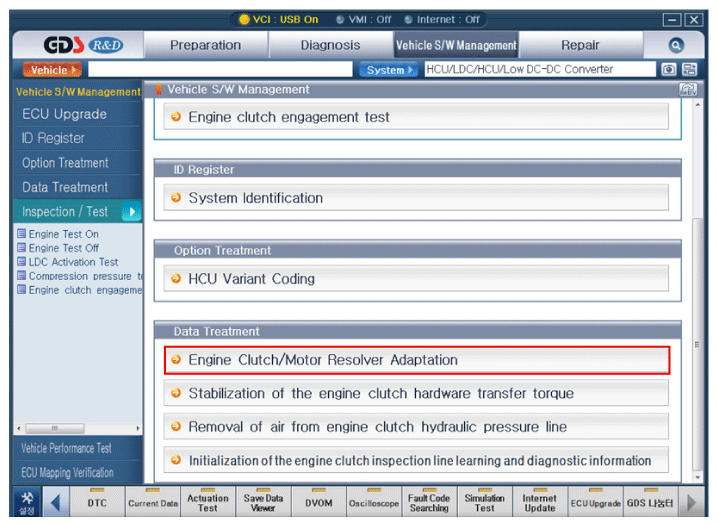

  Fig 1: Screen Display - Engine Clutch/Motor Resolver Adaptation
  Courtesy of KIA MOTORS AMERICA, INC.
