Schematic Diagrams
Schematic Diagrams

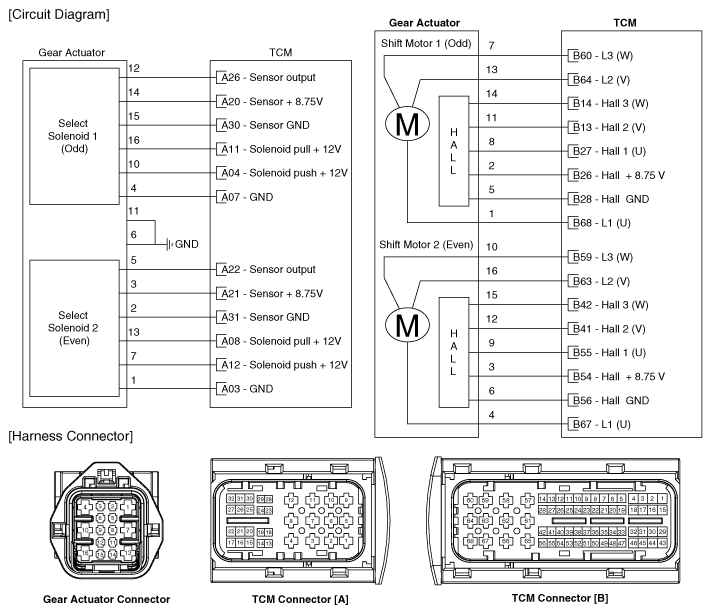

Fig 1: Gear Actuator Shift Motor Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
