Repair Procedures: Installation

1. Install in the reverse order of removal.

NOTE: Before installing the input speed sensor, check the assembled state of the O-rings (A) and apply gear oil to the surface of O-rings.

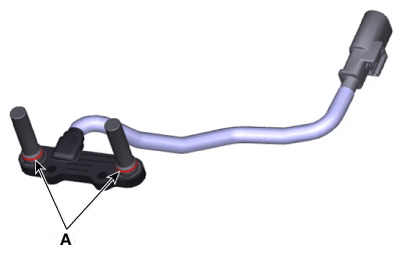

Fig 1: Checking Assembled State Of O-Rings

Courtesy of KIA MOTORS AMERICA, INC.
