Schematic Diagrams
Schematic Diagrams

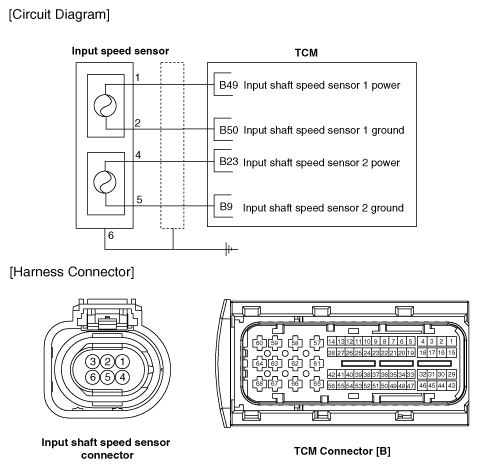

Fig 1: Input Shaft Speed Sensor Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
