Repair and Diagnosis
›
Engine Mechanical
›
Fuel System
›
Fuel Delivery System
›
Fuel Pump Control Module (FPCM)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

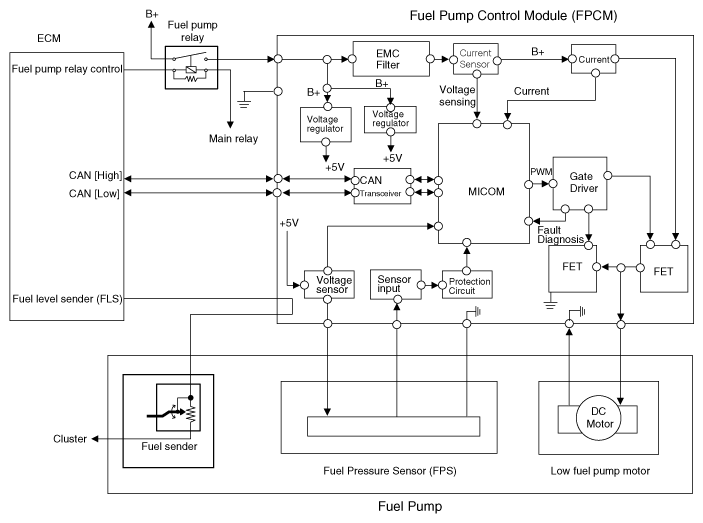

Fig 1: Fuel Pump Control Module System Circuit
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
