Repair Procedures: Removal: Buzzer

1. Disconnect the negative (-) battery terminal.
2. Remove the front left wheel guide.

   (Refer to Body - "FRONT WHEEL GUARD ")

3. Remove the buzzer (A) after disconnecting the connector.

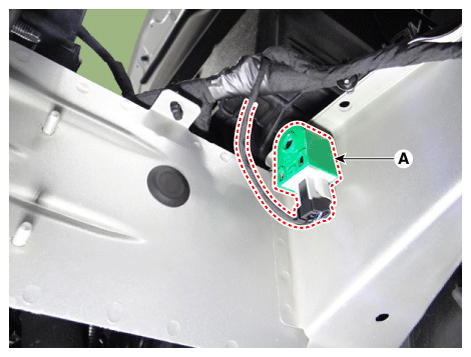

Fig 1: Locating Buzzer

Courtesy of KIA MOTORS AMERICA, INC.
