Driver Power Window Switch: Notes

[Driver Power Window Module (DDM, IMS)]

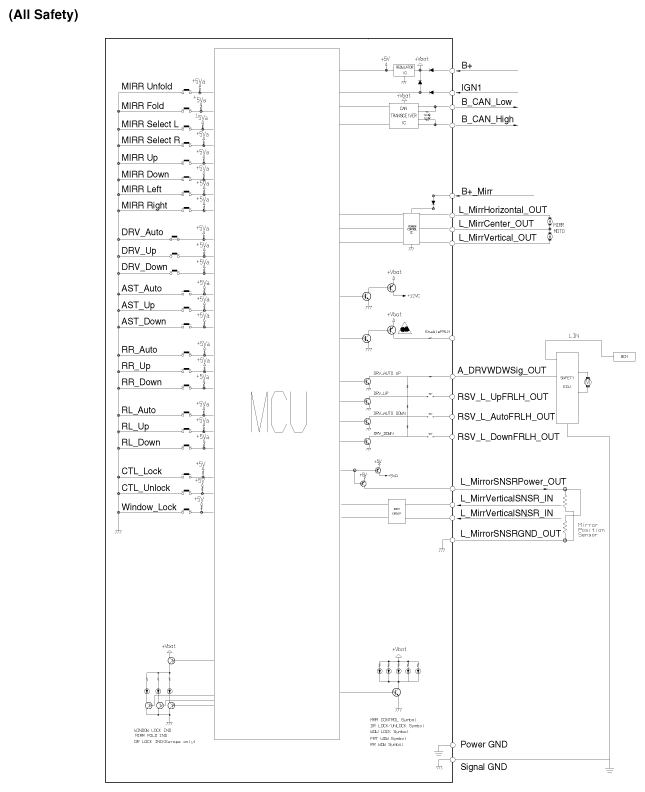

Fig 1: Driver Power Window Module (DDM, IMS) Circuit - All Safety

Courtesy of KIA MOTORS AMERICA, INC.

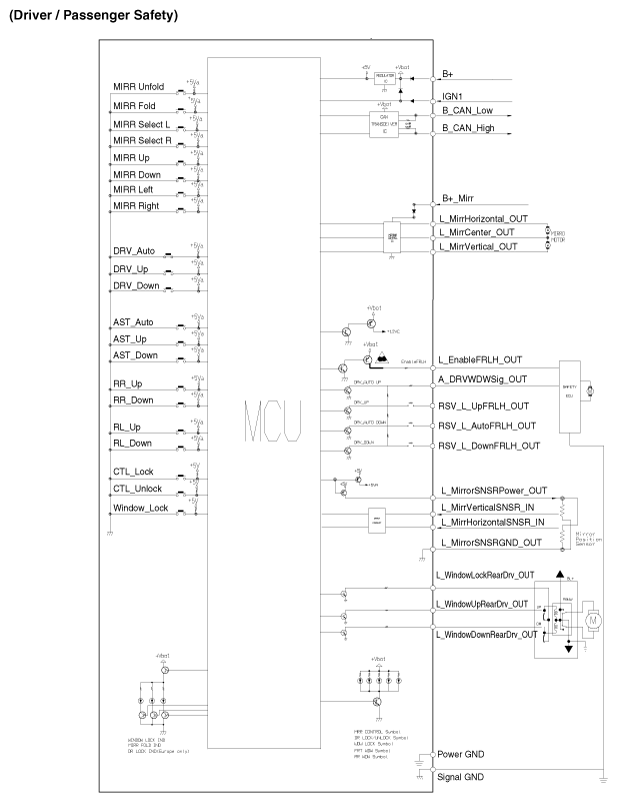

Fig 2: Driver Power Window Module (DDM, IMS) Circuit - Driver And Passenger Safety

Courtesy of KIA MOTORS AMERICA, INC.
