Repair Procedures: Installation

Clean the body bonding surface surroundings (A).

Fig 1: Locating Body Bonding Surface Surroundings
Courtesy of KIA MOTORS AMERICA, INC.

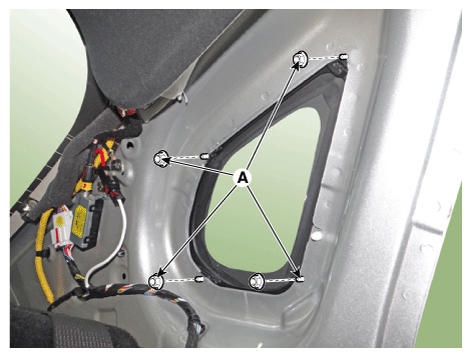

Install the quarter fixed glass and tighten the nut (A).
Tightening torque:

3.9 - 4.9 N.m (0.4 - 0.5 kgf.m, 2.9 - 3.6 lb.ft)

Fig 2: Locating Quarter Fixed Glass Nuts
Courtesy of KIA MOTORS AMERICA, INC.

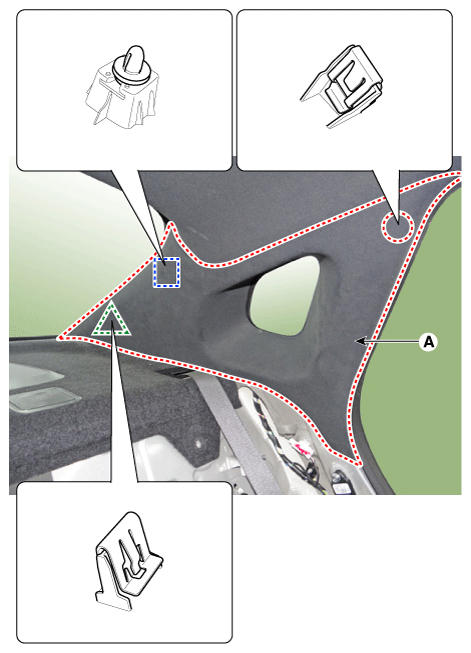

Install the rear pillar trim (A).

Fig 3: Locating Rear Pillar Trim
Courtesy of KIA MOTORS AMERICA, INC.

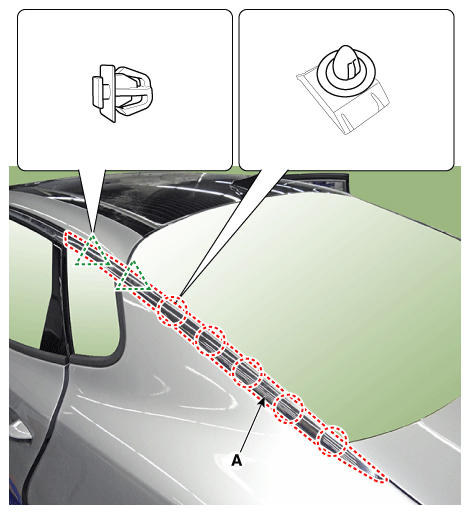

Install the C pillar garnish (A).

Fig 4: Locating C Pillar Garnish
Courtesy of KIA MOTORS AMERICA, INC.

Information

Replace any damaged clips.
