Repair Procedures: Installation

Install in the reverse order of removal.
Tighten the HECU mounting bolts and nuts to the specified torque.
After installation, bleed the brake system.
(Refer to Brake system - "BRAKE SYSTEM BLEEDING ")
Connect the KDS/GDS to the data link connector located underneath the dash panel.
Select and operate according to the instructions on the KDS/GDS screen.

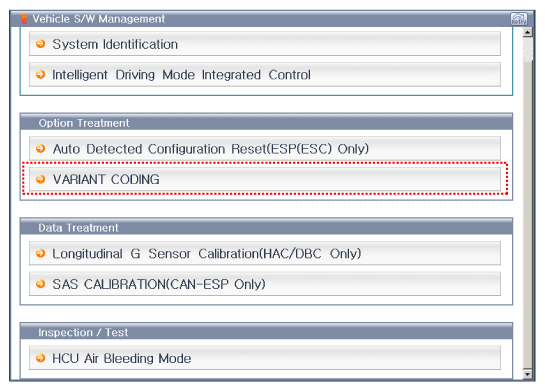

Fig 1: Screen Display - Vehicle S/W Management
Courtesy of KIA MOTORS AMERICA, INC.

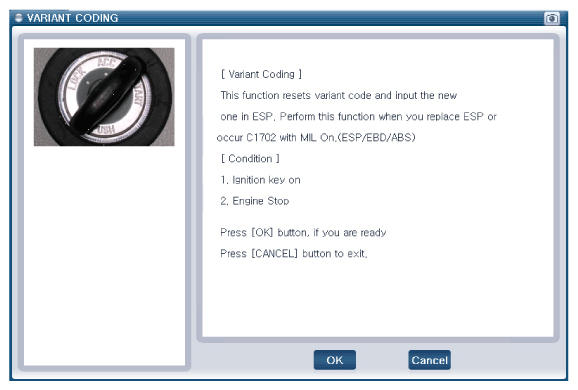

Fig 2: Scantool Display - Variant Coding
Courtesy of KIA MOTORS AMERICA, INC.

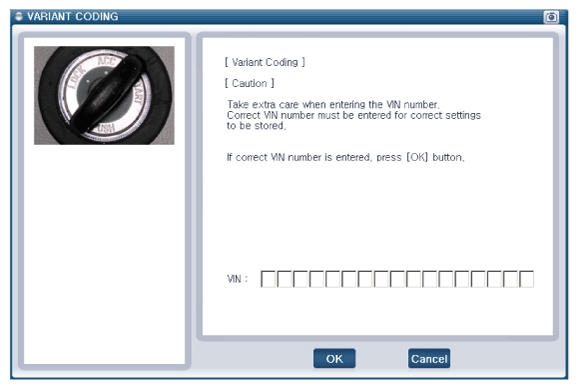

Fig 3: Scantool Display - Variant Coding (VIN)
Courtesy of KIA MOTORS AMERICA, INC.
