Repair Procedures: Removal

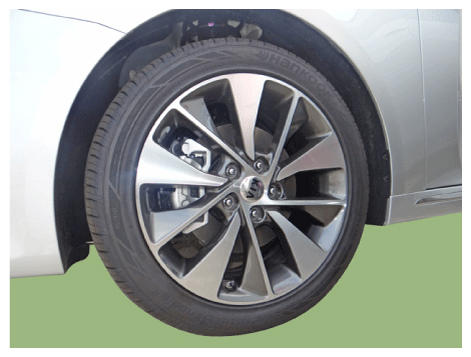

Remove the wheel & tire.
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

Fig 1: Wheel And Tire
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage the hub bolts when removing the front wheel & tire.

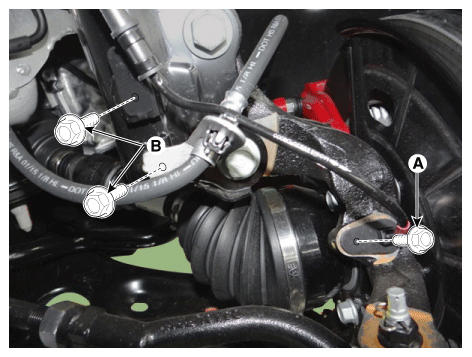

Remove the front wheel speed sensor bolt (A) and bracket bolts (B).
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)

Fig 2: Locating Front Wheel Speed Sensor Bolt And Bracket Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front wheel guard.
(Refer to Body (Interior and Exterior) - "FRONT WHEEL GUARD ")
Disconnect the front wheel speed sensor connector (A) and then remove the front wheel speed sensor.

Fig 3: Locating Front Wheel Speed Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Inspection
1. Measure the output voltage between the terminal of the wheel speed sensor and the body ground.
  CAUTION: In order to protect the wheel speed sensor, a 100 Ω resistor must be used when measuring output voltage.

  Fig 4: Measuring Output Voltage Between Terminal Of Wheel Speed Sensor And Body Ground
  Courtesy of KIA MOTORS AMERICA, INC.
2. Compare the change in the output voltage of the wheel speed sensor to the normal change in the output voltage as shown below.
Fig 5: Wheel Speed Sensor Output Voltage Graph
Courtesy of KIA MOTORS AMERICA, INC.
- V_low: 0.59V - 0.84V
- V_high: 1.18V - 1.68V
- Frequency range: 1 - 2, 500 Hz
