Repair Procedures: Inspection

  1. Switch "OFF" the ignition and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower panel.

    (Refer to Body (Interior and Exterior) - "CRASH PAD ")

  3. Remove the crash pad switch assembly (A).

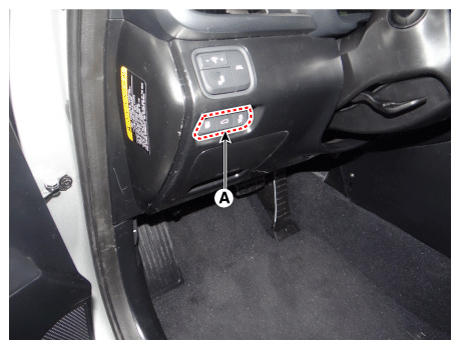

Fig 1: Locating Crash Pad Switch Assembly
G12142235Courtesy of KIA MOTORS AMERICA, INC.
