Repair Procedures: Disassembly

Remove the hub assembly mounting bolts (A) from the knuckle (B).
Tightening torque:

78.4 - 98.0 N.m (8.0 - 10.0 kgf.m, 57.8 - 72.3 lb.ft)

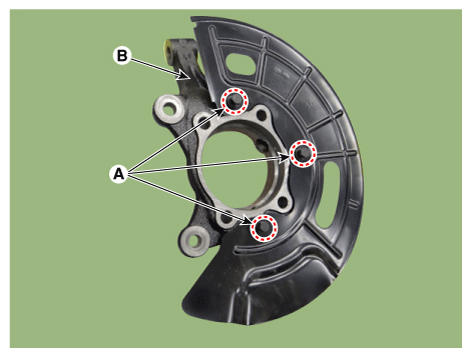

Fig 1: Locating Knuckle And Hub Assembly Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the screw (A) from the knuckle (B).

Fig 2: Locating Knuckle And Screw
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
