Charging System - 2.4L (Except HEV)
›
Alternator
›
Components and Components Location
›
Components
Components and Components Location: Components

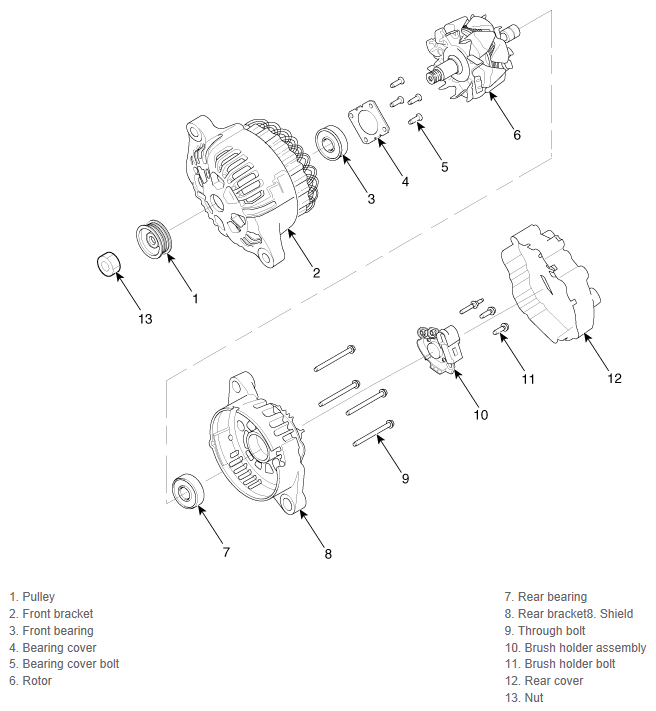

Fig 1: Exploded View Of Alternator Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
