Repair Procedures: Removal

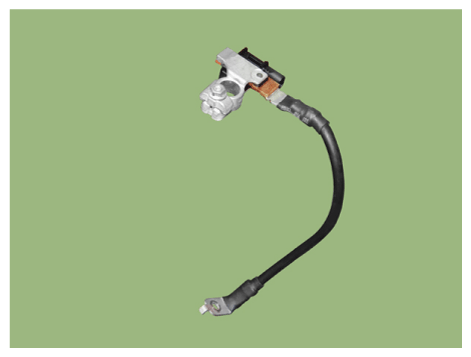

Fig 1: Battery Sensor

Courtesy of KIA MOTORS AMERICA, INC.

Turn the ignition switch OFF.

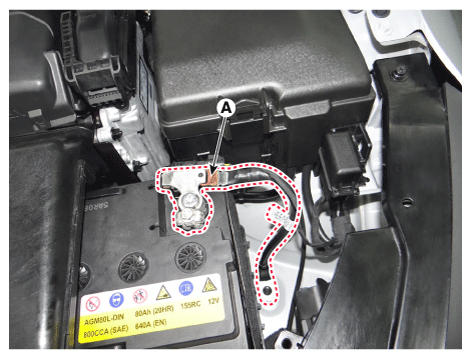

Disconnect the battery negative (-) terminal (A).
Battery negative (-) terminal tightening nut :

4.0 - 6.0 N.m (0.4 - 0.6 kgf.m, 3.0 - 4.4 lb.ft)

Fig 2: Locating Battery Negative (-) Terminal
Courtesy of KIA MOTORS AMERICA, INC.

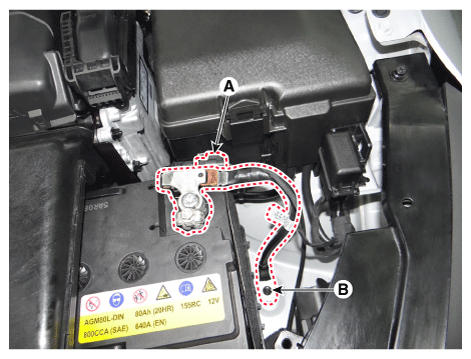

Disconnect the battery sensor connector (A).
Remove the battery sensor by loosening the mounting bolt (B).
Battery sensor cable flange mounting bolt (Chassis ground) :

10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb.ft)
