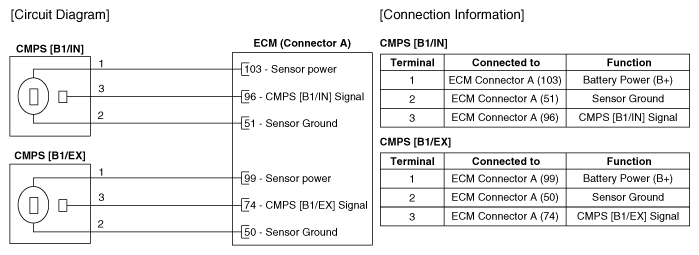

Home › Kia › 2017 › Optima EX › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.4L (Except HEV) › Camshaft Position Sensor (CMPS) › Schematic Diagrams › Circuit Diagram
