Circuit Diagram

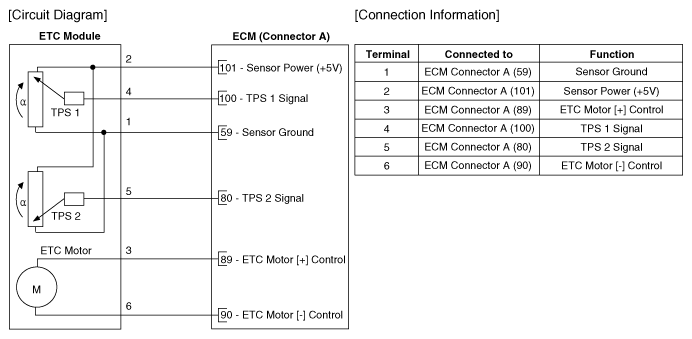

Fig 1: ETC Module Circuit
G12146839Courtesy of KIA MOTORS AMERICA, INC.

Harness Connector

Fig 2: ETC Module Connector Terminals
G12146840Courtesy of KIA MOTORS AMERICA, INC.
