Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the smart key unit.

    (Refer to Smart Key System - "SMART KEY UNIT ")

  3. Disconnect the body control module connectors (A).

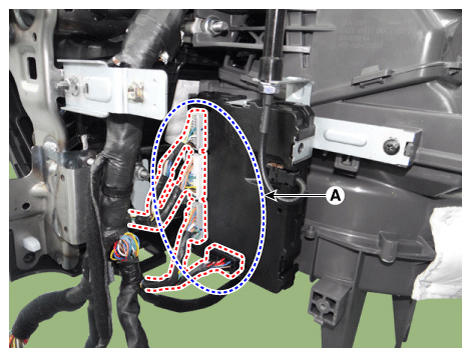

    Fig 1: Locating Body Control Module Connectors
    G12143044Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the body control module (A) after loosening the mounting nut and screw.
Fig 2: Locating Body Control Module With Mounting Nut And Screw
G12143045Courtesy of KIA MOTORS AMERICA, INC.
