Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

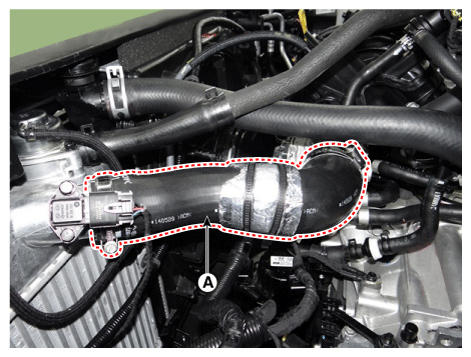

Remove the intercooler outlet hose (A).

Fig 1: Locating Intercooler Outlet Hose
Courtesy of KIA MOTORS AMERICA, INC.

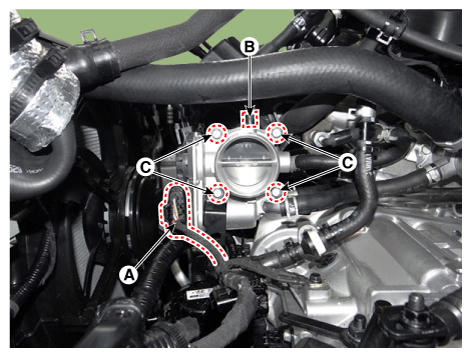

Disconnect the ETC module connector (A) and vapor hose (B),
Remove the ETC module mounting bolts (C).

Fig 2: Locating ETC Module Connector, Vapor Hose And ETC Module Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

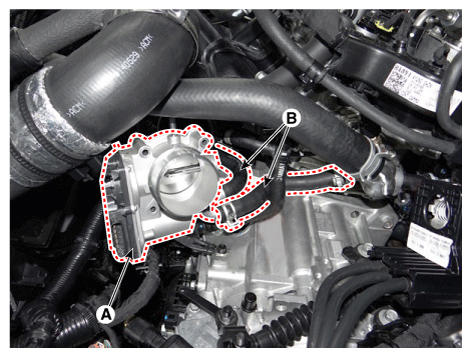

Remove the ETC module (A) after disconnect the coolant hoses (B).
