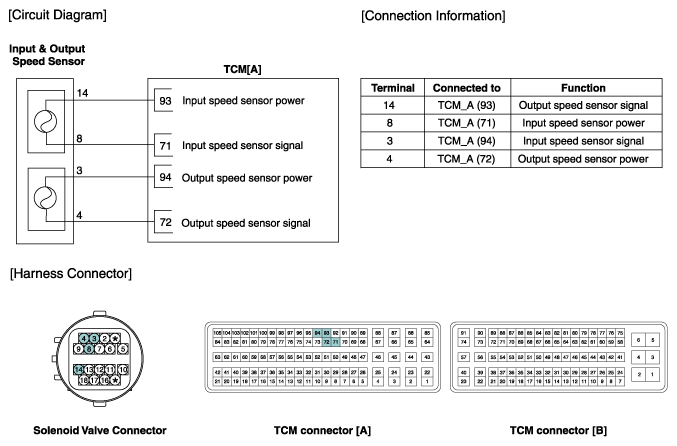

Home › Kia › 2017 › Optima EX › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 2.4L (Except HEV) › Input Speed Sensor › Schematic Diagrams › Circuit Diagram
