[Bank 1/Intake]
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

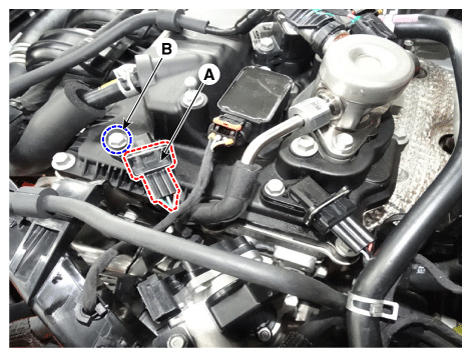

- Disconnect the camshaft position sensor connector (A).
- Remove the camshaft position sensor after loosening the mounting bolt (B).
Camshaft Position Sensor Mounting Bolt :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
