Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the negative (-) battery cable.
Lift the vehicle.
Remove the rear-left wheel & tire and house cover.
Disconnect the canister close valve connector (A).
Disconnect the ventilation hose (B).
Remove the fuel tank air filter after removing the mounting bolts (C).

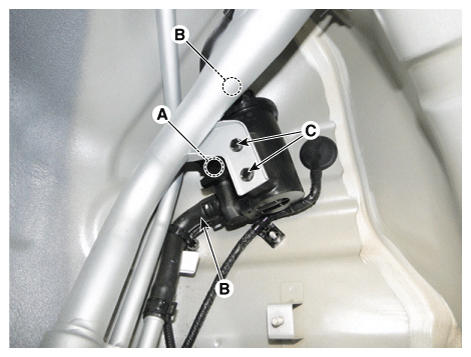

Fig 1: Locating Canister Close Valve Connector
Courtesy of KIA MOTORS AMERICA, INC.
Release the lever (A), and then rotate 30 degrees to the canister closed valve

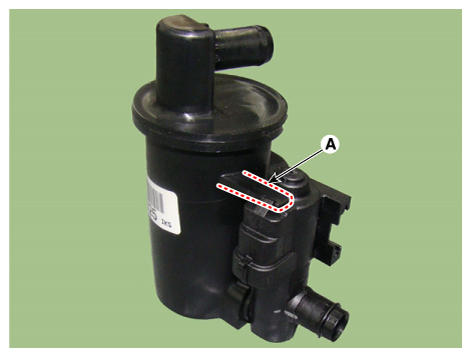

Fig 2: Locating Lever
Courtesy of KIA MOTORS AMERICA, INC.

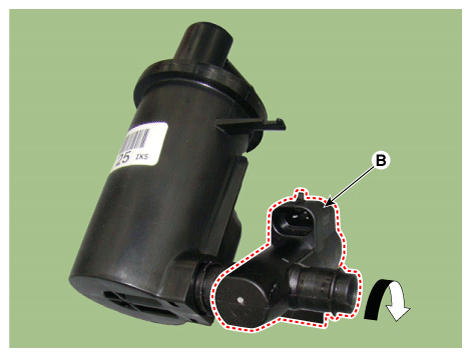

Fig 3: Rotate Canister Closed Valve
Courtesy of KIA MOTORS AMERICA, INC.
Remove the canister close valve from the fuel tank air filter.
