Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the air duct and air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Disconnect the EEGR control valve connector (A).

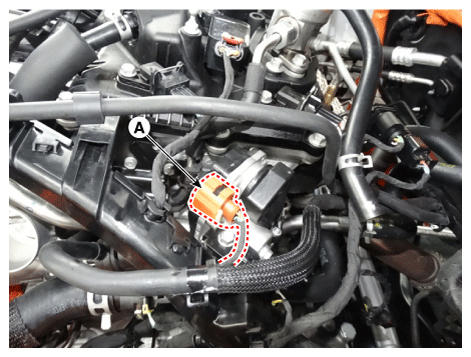

    Fig 1: Locating EEGR Control Valve Connector
    G12309004Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the EEGR control valve (B) after removing the mounting bolt (A).

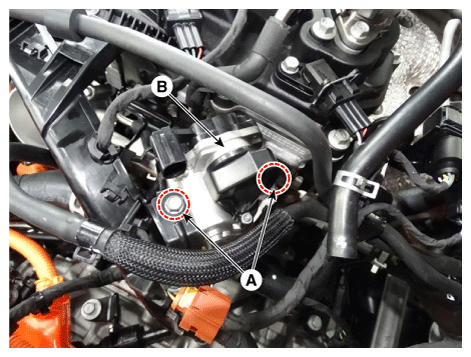

    Fig 2: Locating EEGR Control Valve With Mounting Bolt
    G12309005Courtesy of KIA MOTORS AMERICA, INC.
