Kia
›
2017
›
Optima Hybrid, 2.0L Eng VIN C
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System (HEV)
›
Electric EGR Control Valve
›
Troubleshooting
›
Signal Waveform
Signal Waveform

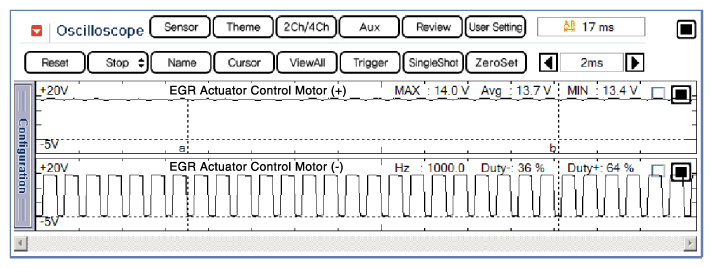

Fig 1: Screen Display - Duty Control, EEGR Motor (-) At Deceleration Or Idle
Courtesy of KIA MOTORS AMERICA, INC.

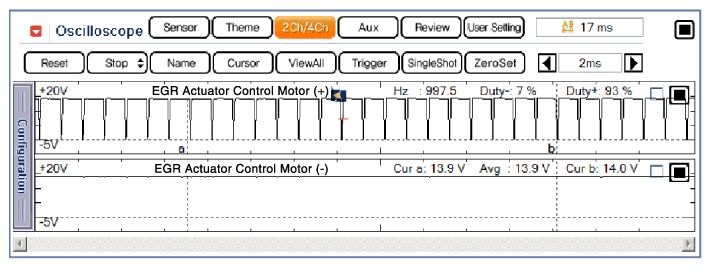

Fig 2: Screen Display - Duty Control, EEGR Motor (+) At Acceleration
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
