Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the fuel tank.

    (Refer to Fuel Delivery System - "FUEL TANK ")

  3. Disconnect the fuel tank pressure sensor connector (A).
  4. Disconnect the vapor hose (B).

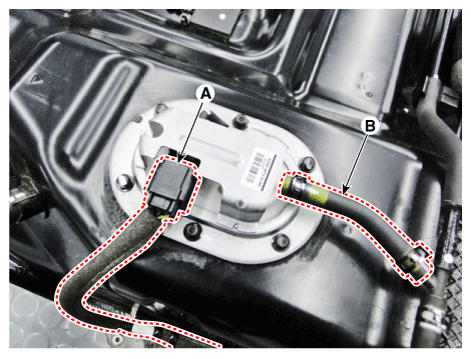

    Fig 1: Locating Fuel Tank Pressure Sensor Connector & Vapor Hose
    G12308970Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the 2 way cup valve plate (A) after removing the bolts.

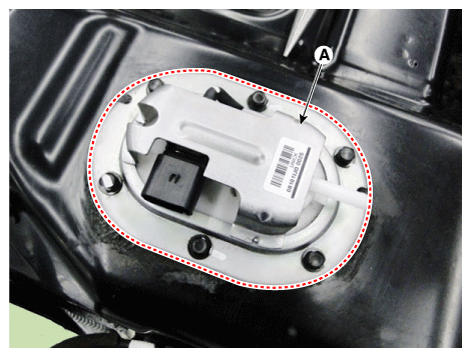

    Fig 2: Locating 2 Way Cup Valve Plate With Bolts
    G12308971Courtesy of KIA MOTORS AMERICA, INC.
  6. Release the hooks and then remove the fuel tank pressure sensor from the fuel pump.
